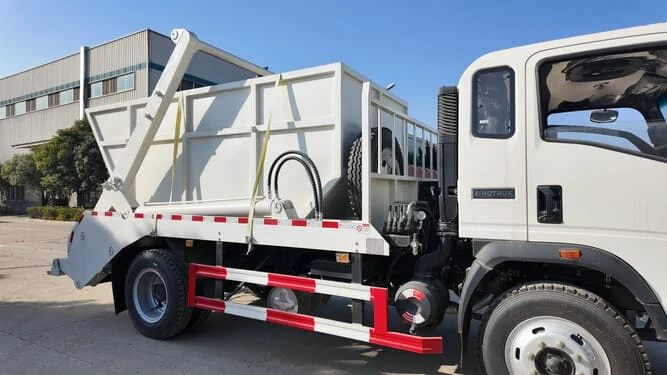

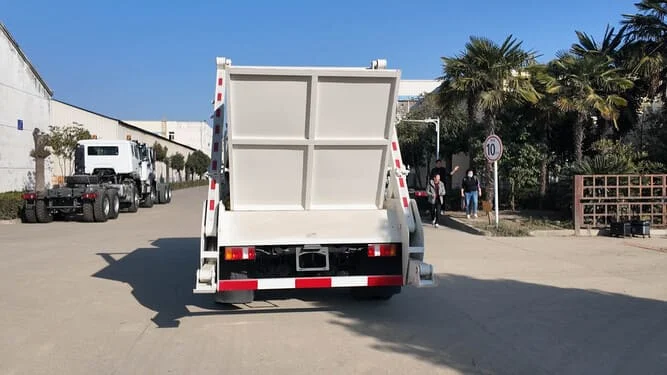

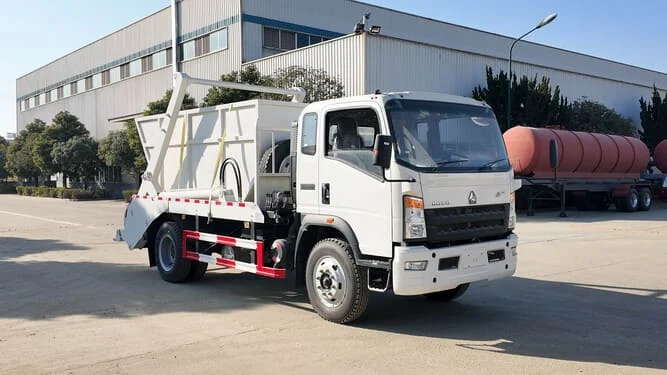

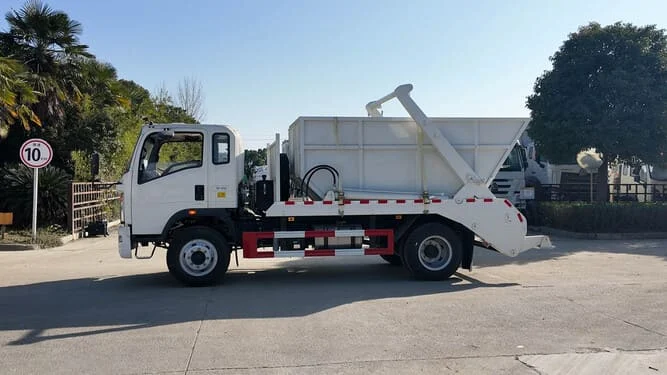

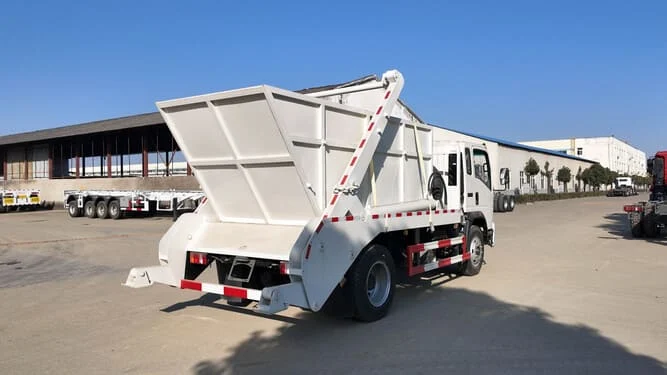

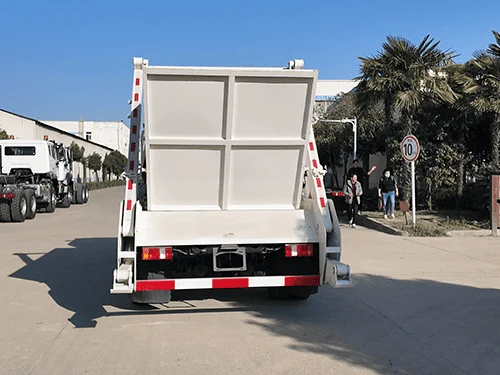

SINOTRUK HOWO 4X2 Skipper Swing Arm Garbage Trucks are also called detachable garbage trucks and hook-arm garbage trucks. They are mainly used in various sanitation municipalities and large factories and mines to carry various kinds of garbage. They can also transport bulk building materials such as ash, sand, stone and soil. Ores or coal can also be transported in mines or coal mines.

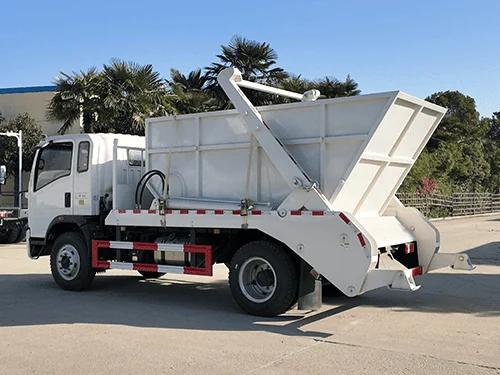

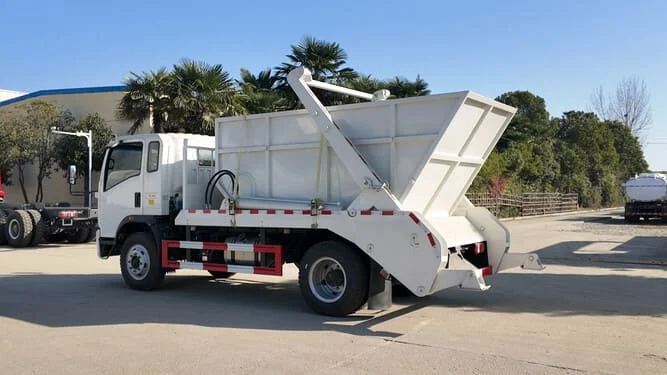

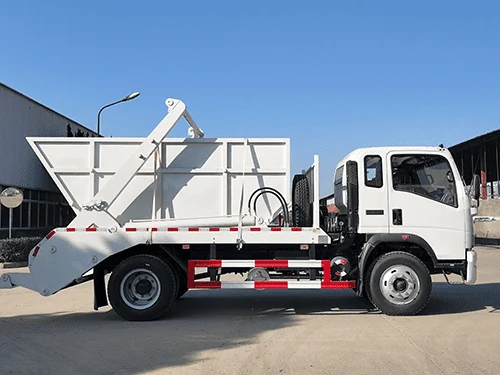

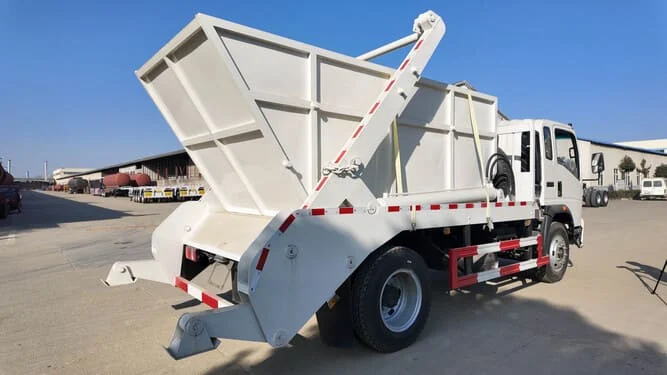

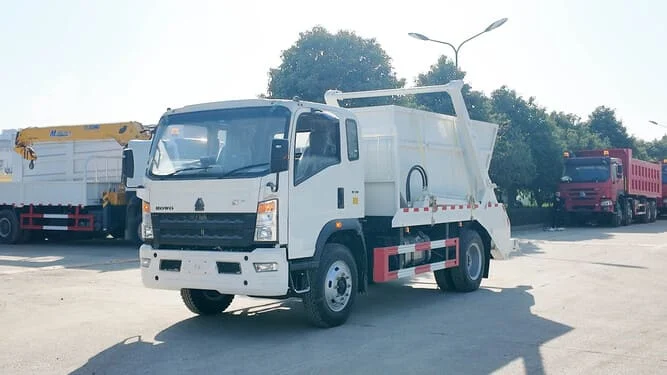

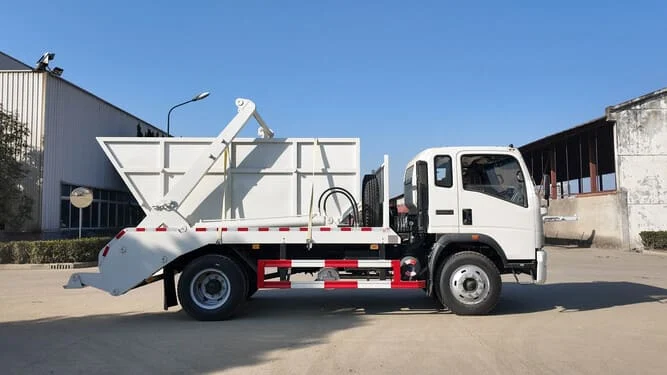

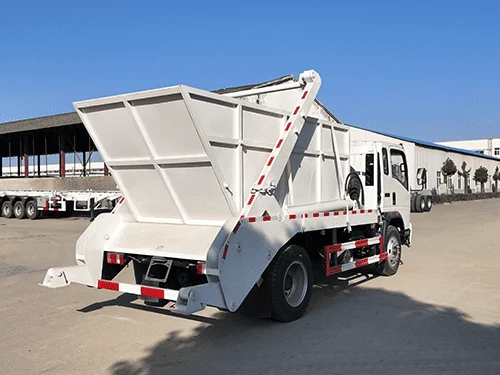

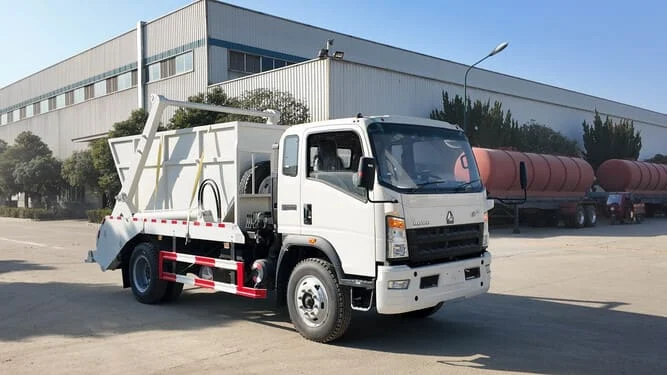

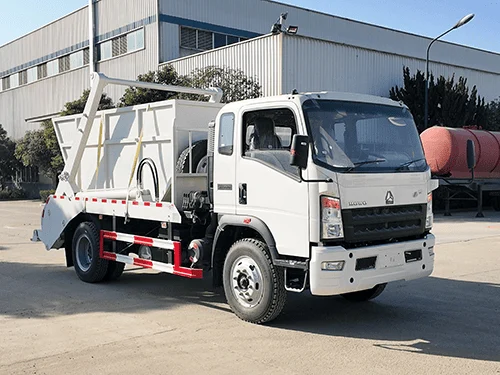

The SINOTRUK HOWO 4X2 Skipper Swing Arm Garbage Truck is a high-performance sanitation vehicle integrating a heavy-duty HOWO 4×2 chassis with an efficient swing-arm hydraulic system, designed for efficient garbage collection, bin handling, and short-to-medium distance transportation. It features strong power, reliable operation, large loading capacity, and flexible maneuverability, making it ideal for urban, suburban, and industrial waste management scenarios.
Structure
Composed of a truck chassis, a main oil cylinder with a pull arm, an attached frame, a flip frame, a locking frame, a locking cylinder and a multi-way directional valve.
One end of the flip frame is attached to the chassis, the other end is equipped with a movable pull arm, and a locking system is installed in the middle. One end of the movable arm cylinder is connected to the movable arm, and the other end is connected to the attached frame.
Operation Principle
Use the retracting or extending of the main oil cylinder to make the movable arm drag the bottom trash bin to the attached frame or put it back to the ground from the attached frame.

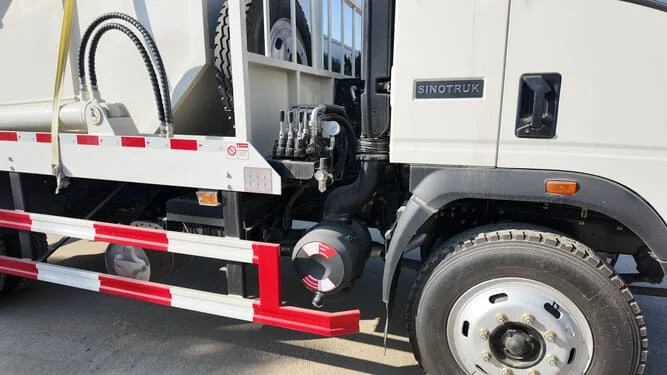

The hydraulic system is powered by the gearbox and PTO, and the manual multi-way directional valve controls the outrigger cylinder and swing arm cylinder for telescopic movement.
The boom is connected to the bottom plate, the movable part of the boom cylinder is connected to the boom, and the fixed end is usually connected to the bottom plate; all the activities of the boom cylinder are rotated around the hinge point, so that both lifting and self-unloading of the garbage bin are done freely. At the same time, the stability of the vehicle is greatly improved.
The truck can do automatic loading and unloading, therefore reduces the investment of manpower.
The swing arm has a working cycle time of 60S, and the garbage bucket is separated from the truck, which realizes the operation of one truck and multiple buckets and cyclic transportation.
The truck has complete functions, simple structure, simple operation, solid and durable, low maintenance cost.

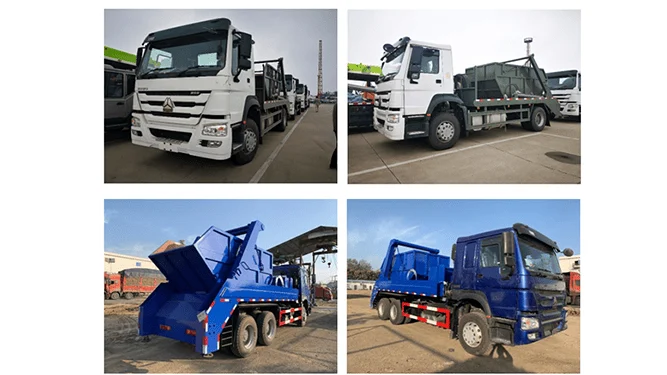

For swing-arm garbage truck, the most classic type is 4X2 driving model. We also have 6X4 for your optional.
Drive model: 4X2 or 6X4
Capacity: 3CBM to 20CBM
Engine: 116HP, 120HP, 140HP to 300HP, 380HP or 400HP
From 3 CBM to 8CBM, you can choose 4X2 light duty chassis;
From 8CBM to 10CBM, you can choose 4×2 heavy duty chassis;
Over 10CBM, you can choose 6X4 heavy duty chassis.
You can choose the hook-arm truck according to the load capacity.
The truck is small in size, can enter in various communities and schools, and one truck is equipped with multiple trash bins, high efficient, the garbage body adopts sealed design and anti-corrosion technology, will not Causes secondary pollution and increases the service life of the dustbin.
Cost Control

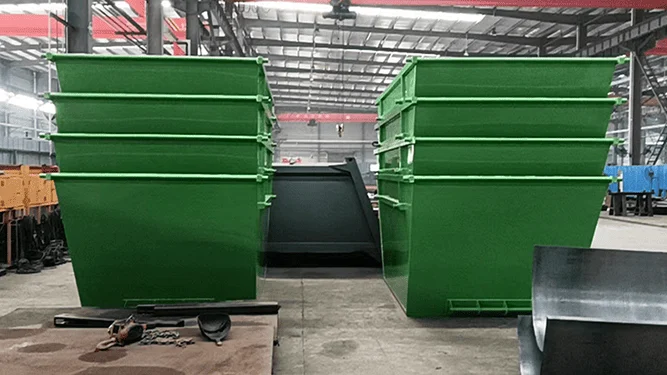

We can put 5 units in a pile to save freight.
If you are interested in our products, please submit your requirements immediately and we will arrange professionals to serve you.
