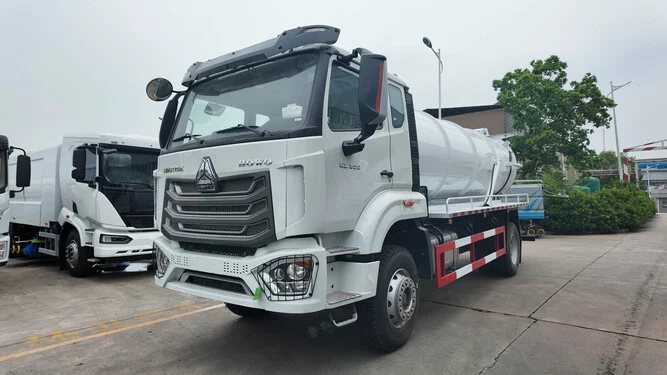

HOWO NX 4X2 12,000 Liters Sewage Suction Truck

The HOWO NX 4X2 12000 Liters Sewage Suction Truck is mainly used to suck, transport, unload, and load waster water and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck industrial waste oil, and sewage in large factories.

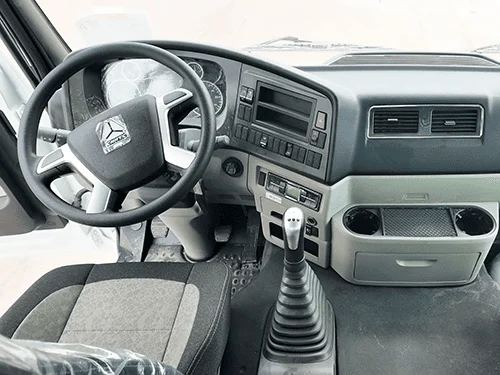

HOWO NX 4X2 12000 Liters Sewage Suction Truck-17

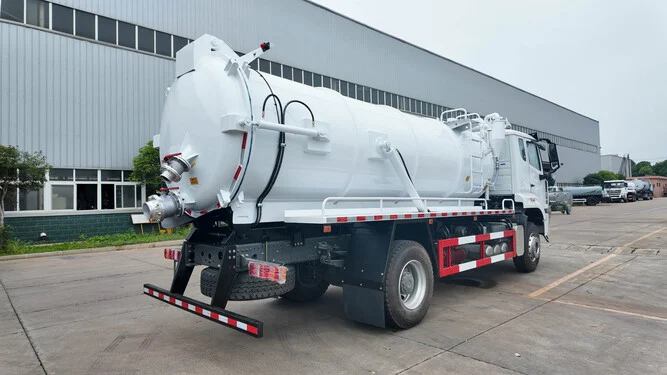

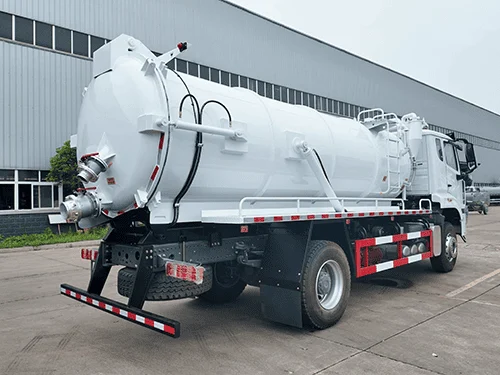

HOWO NX 4X2 12000 Liters Sewage Suction Truck-4

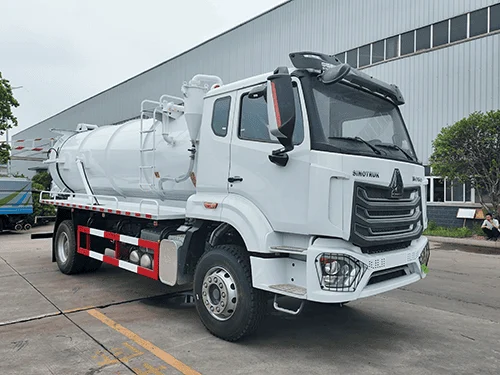

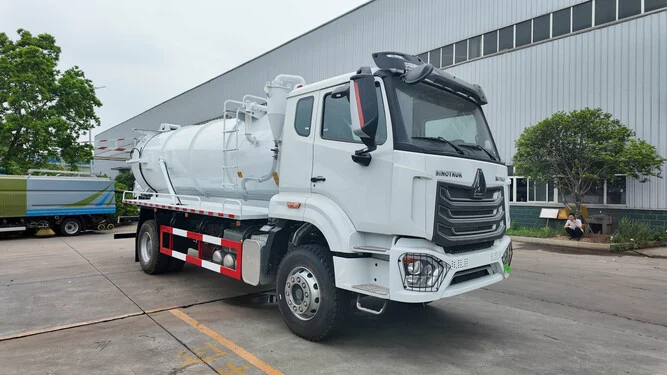

HOWO NX 4X2 12000 Liters Sewage Suction Truck-1

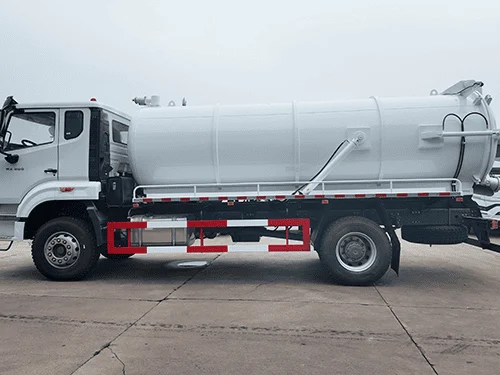

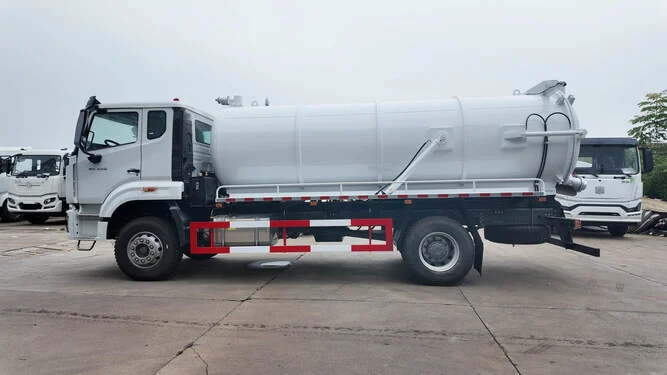

HOWO NX 4X2 12000 Liters Sewage Suction Truck-7

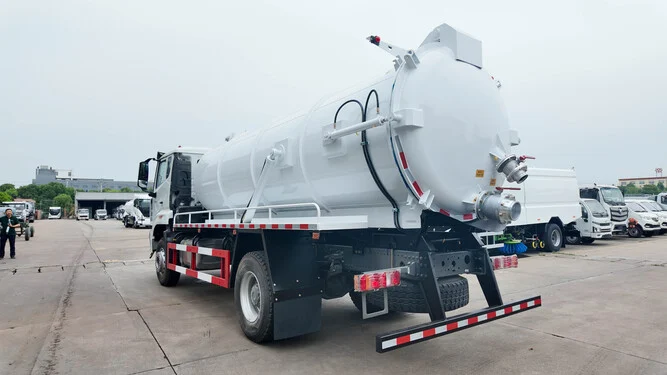

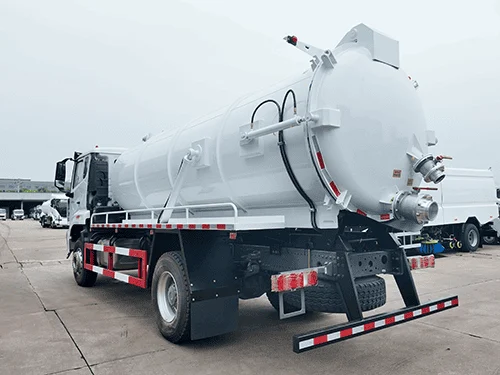

HOWO NX 4X2 12000 Liters Sewage Suction Truck-6

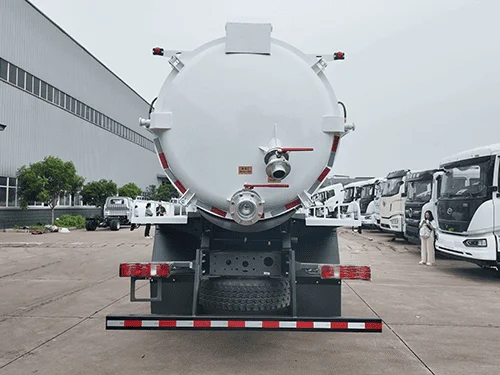

HOWO NX 4X2 12000 Liters Sewage Suction Truck-5

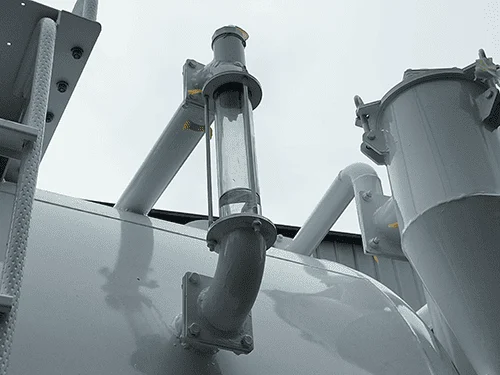

HOWO NX 4X2 12000 Liters Sewage Suction Truck-22

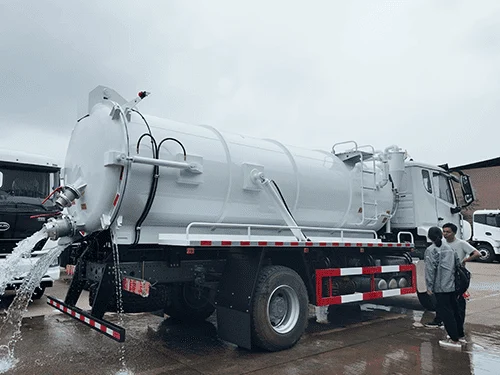

HOWO NX 4X2 12000 Liters Sewage Suction Truck-24

Models:


Model:	ZZ1187N511JB
Drive type:	4X2 left hand drive
Wheel base (mm):	5100
Cab type:	Forward control over engine, all-steel-welded construction, tilting cab; rear points airbag suspensions.
Cab type:		Heating and ventilating system with A/C.
Engine model:	WD615.87,290HP EURO II
Engine model:		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power output:	290HP
Brakes:	Dual independent circuit fully pneumatic with automatic slack adjusters, Spring loaded hand brake

Application

The HOWO NX 4×2 12,000 Liters Sewage Suction Truck features strong vacuum suction performance, large sewage carrying capacity, and reliable transportation efficiency. Built on the durable HOWO NX chassis and equipped with a high-efficiency vacuum pump system, it can quickly collect, transport, and discharge sewage, sludge, and liquid waste materials with stable operating performance. Its reinforced tank structure, flexible 4×2 chassis design, and stable driving capability ensure efficient operation in urban and industrial environments, while the low operating cost and durable components make it suitable for municipal sanitation, septic tank cleaning, sewer maintenance, and industrial waste management operations.

HOWO NX 4X2 12000 Liters Sewage Suction Truck-1

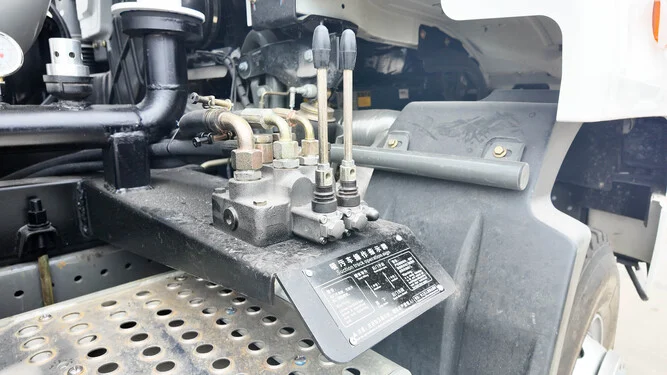

HOWO NX 4X2 12000 Liters Sewage Suction Truck-13

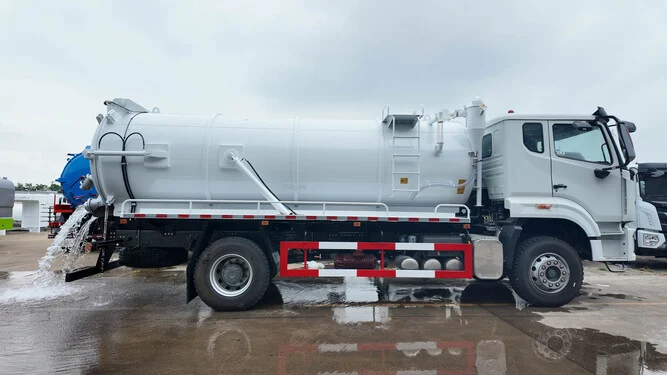

HOWO NX 4X2 12000 Liters Sewage Suction Truck-25

Specifications:


Model:	ZZ1187N511JB
Drive type:	4X2 left hand drive
Wheel base (mm):	5100
Cab type:	Forward control over engine, all-steel-welded construction, tilting cab; rear points airbag suspensions.
Cab type:		Heating and ventilating system with A/C.
Engine model:	WD615.87,290HP EURO II
Engine model:		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power output:	290HP
Brakes:	Dual independent circuit fully pneumatic with automatic slack adjusters, Spring loaded hand brake
Transmission gear:	HW19710 gear box with 10 forward and 2 reverse
Front axle:	Drum brake, 7100kg
Rear axle:	Drum brake, 16000kg
Clutch ( mm):	Reinforced diaphragm clutch, diameter 430 mm
Fuel tank (L):	400
Tyre:	315/80R22.5 tubeless tires, 7 pcs including 1 spare tire
Tank volume	12,000 Liters
Material:	Carbon steel
Shell Body:	6 mm nominal thickness
End Plate	6 mm nominal thickness
Baffle Plate	6 mm nominal thickness
Tank shape:	Ellipse
Compartment:	One compartment
Compartment:		(multi-compartment are available)
Strengthen ring:	Cool blended U shape. Add the strengthen ring on the tank out circle.
Tipping hydraulic:	For convenient tipping at 45 degree angle, one heavy tipping hydraulic pump is fixed.
Shell Finish:	Shot blasted with 1 anti rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
Safety support	fix with safety valve during working
Lever detector	Fix one lever detector on the rear of the tank for clearing the sullage.
Over Pressure device	Fixed on the top of the tank
Vacuum valve	For keeping the tank's inside vacuum
Sewage discharge valve	The stainless steel discharge valve is fixed on the rear used for keeping the tank's rear clean


Model:	ZZ1187N511JB
Drive type:	4X2 left hand drive
Wheel base (mm):	5100
Cab type:	Forward control over engine, all-steel-welded construction, tilting cab; rear points airbag suspensions.
Cab type:		Heating and ventilating system with A/C.
Engine model:	WD615.87,290HP EURO II
Engine model:		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power output:	290HP
Brakes:	Dual independent circuit fully pneumatic with automatic slack adjusters, Spring loaded hand brake
Transmission gear:	HW19710 gear box with 10 forward and 2 reverse
Front axle:	Drum brake, 7100kg
Rear axle:	Drum brake, 16000kg
Clutch ( mm):	Reinforced diaphragm clutch, diameter 430 mm
Fuel tank (L):	400
Tyre:	315/80R22.5 tubeless tires, 7 pcs including 1 spare tire
Tank volume	12,000 Liters
Material:	Carbon steel
Shell Body:	6 mm nominal thickness
End Plate	6 mm nominal thickness
Baffle Plate	6 mm nominal thickness
Tank shape:	Ellipse
Compartment:	One compartment
Compartment:		(multi-compartment are available)
Strengthen ring:	Cool blended U shape. Add the strengthen ring on the tank out circle.
Tipping hydraulic:	For convenient tipping at 45 degree angle, one heavy tipping hydraulic pump is fixed.
Shell Finish:	Shot blasted with 1 anti rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
Safety support	fix with safety valve during working
Lever detector	Fix one lever detector on the rear of the tank for clearing the sullage.
Over Pressure device	Fixed on the top of the tank
Vacuum valve	For keeping the tank's inside vacuum
Sewage discharge valve	The stainless steel discharge valve is fixed on the rear used for keeping the tank's rear clean

Feature:

1. Powerful Vacuum Suction Performance
Equipped with a high-efficiency vacuum pump system.
Quickly collects sewage, sludge, and liquid waste materials.
Stable suction performance improves working efficiency.

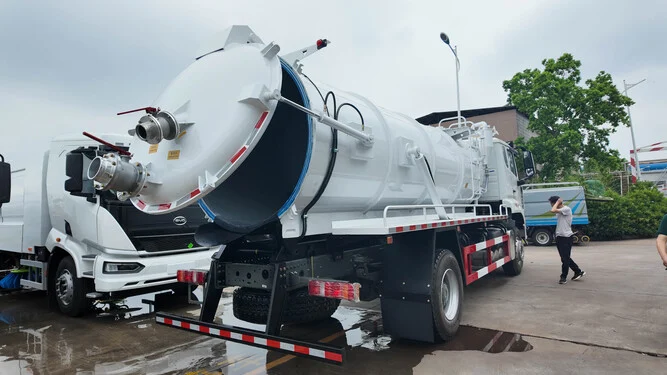

HOWO NX 4X2 12000 Liters Sewage Suction Truck-26

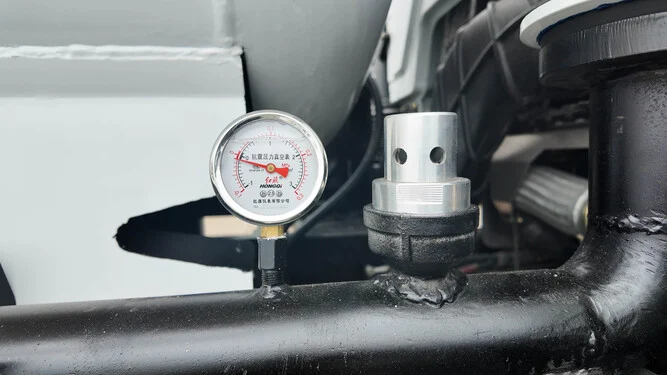

HOWO NX 4X2 12000 Liters Sewage Suction Truck-12

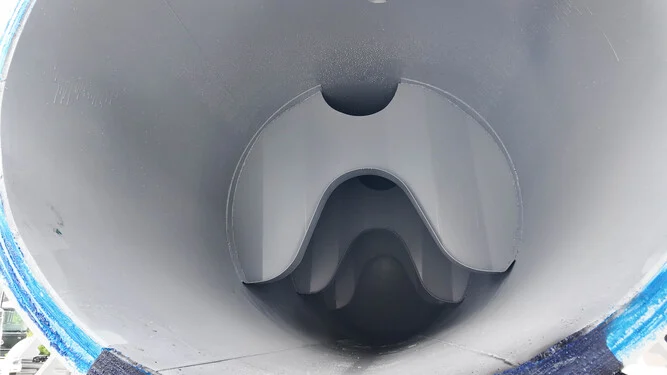

HOWO NX 4X2 12000 Liters Sewage Suction Truck-27

2. Large 12,000 Liters Tank Capacity
Large-capacity tank reduces transportation frequency.
Improves operational efficiency for long-distance sewage transport.
Suitable for large-scale sanitation and industrial operations.

HOWO NX 4X2 12000 Liters Sewage Suction Truck-7

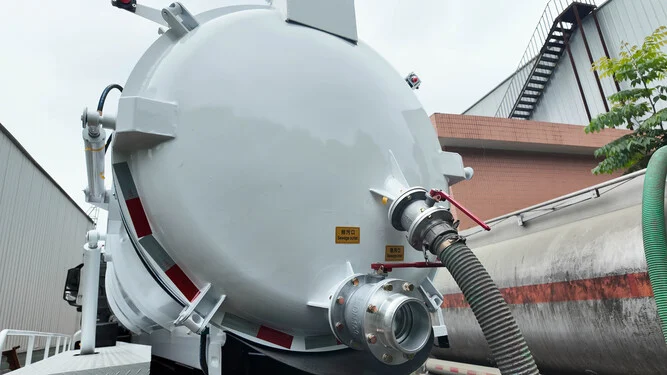

HOWO NX 4X2 12000 Liters Sewage Suction Truck-21

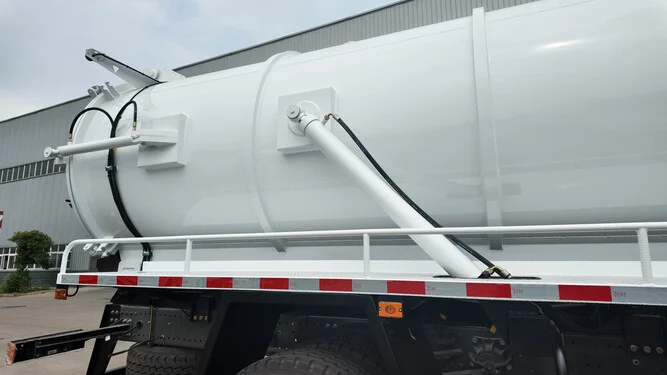

HOWO NX 4X2 12000 Liters Sewage Suction Truck-16

3. Durable HOWO NX Chassis
Reinforced HOWO NX chassis provides strong carrying capacity.
Stable suspension and axle system improve driving reliability.
Suitable for urban roads and industrial working environments.

HOWO NX 4X2 12000 Liters Sewage Suction Truck-11

HOWO NX 4X2 12000 Liters Sewage Suction Truck-6

HOWO NX 4X2 12000 Liters Sewage Suction Truck-4

4. Reinforced Sewage Tank Structure
High-strength steel tank ensures long service life.
Corrosion-resistant design suitable for sewage transportation.
Sealed tank structure helps prevent leakage and odor spread.

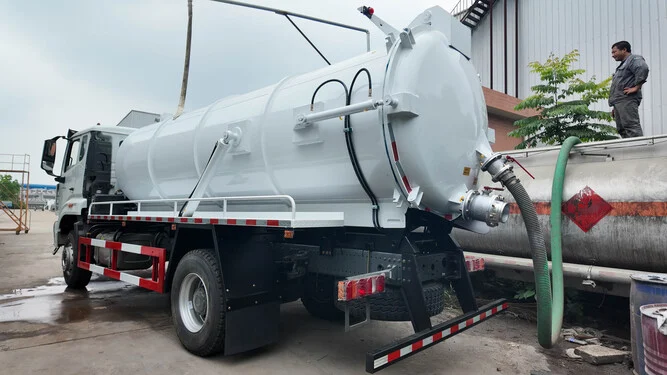

HOWO NX 4X2 12000 Liters Sewage Suction Truck-20

HOWO NX 4X2 12000 Liters Sewage Suction Truck-27

HOWO NX 4X2 12000 Liters Sewage Suction Truck-26

5. Flexible 4×2 Design
Compact and flexible chassis design improves maneuverability.
Suitable for narrow urban roads and residential areas.
Easy operation in municipal sanitation work.

HOWO NX 4X2 12000 Liters Sewage Suction Truck-11

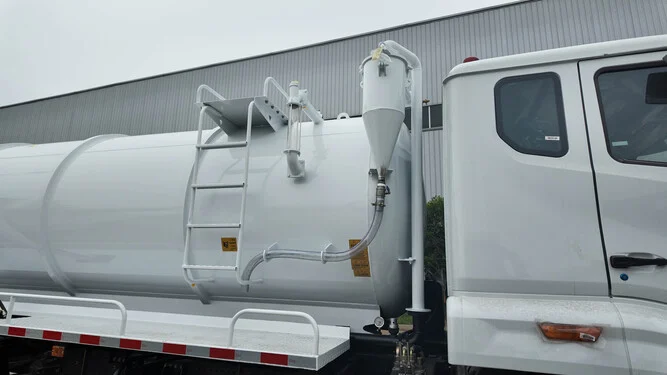

HOWO NX 4X2 12000 Liters Sewage Suction Truck-3

HOWO NX 4X2 12000 Liters Sewage Suction Truck-1
