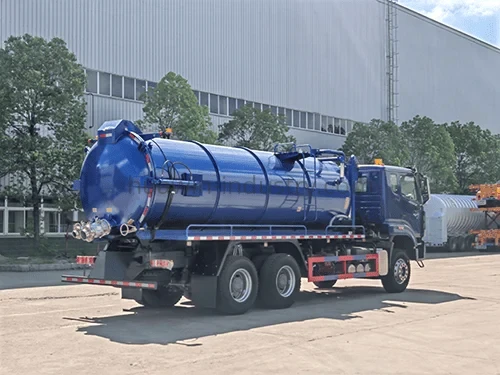

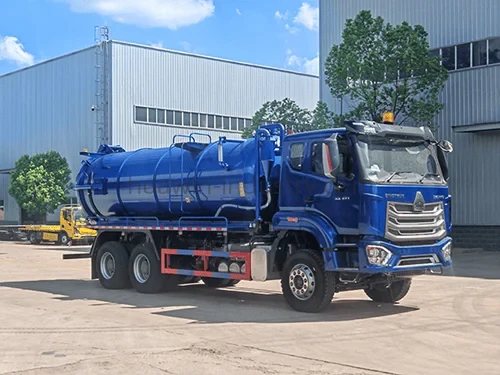

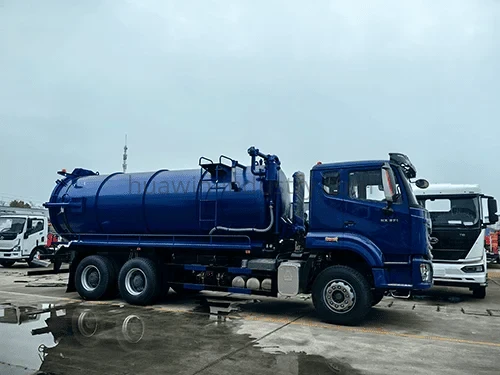

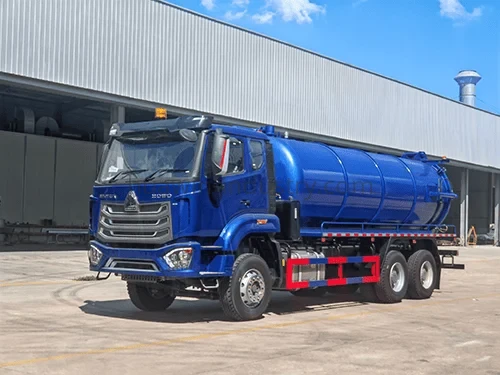

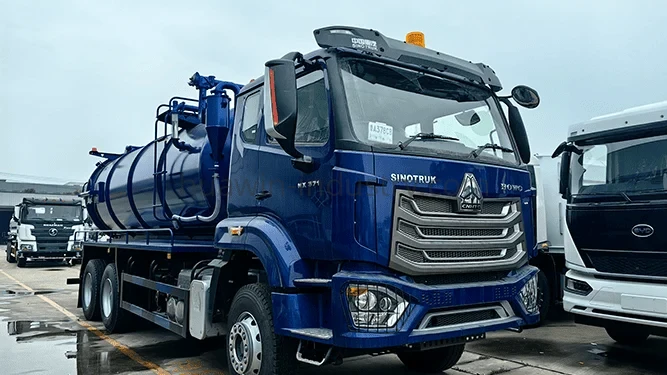

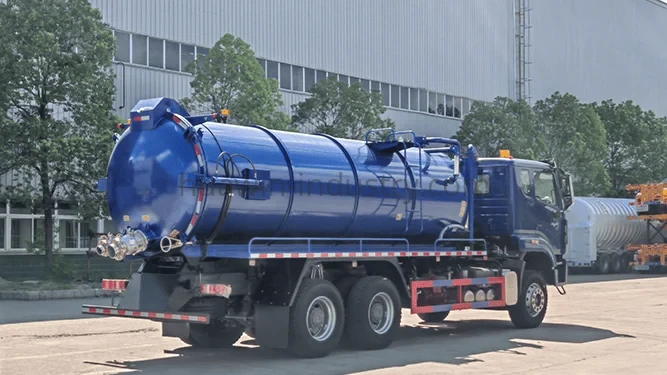

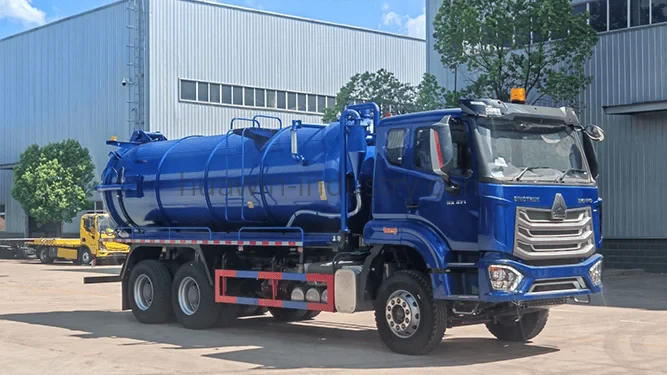

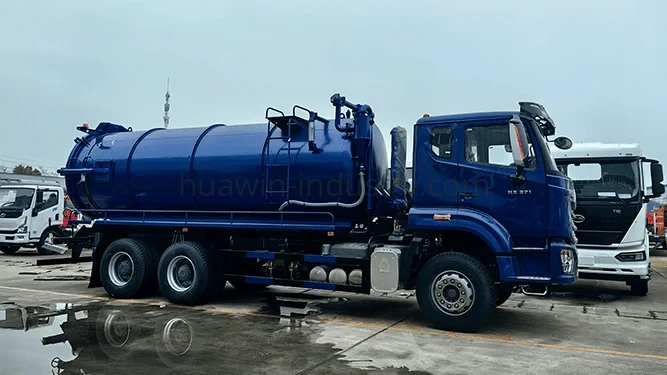

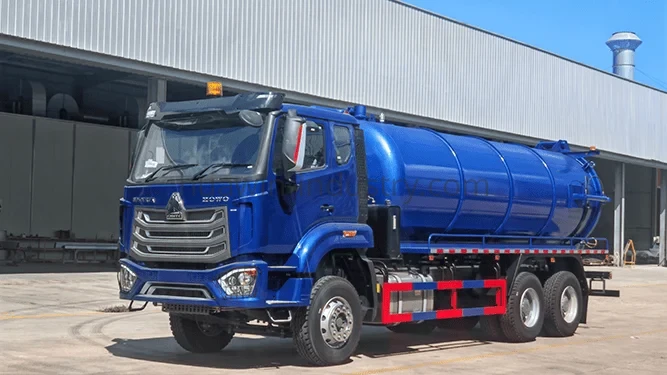

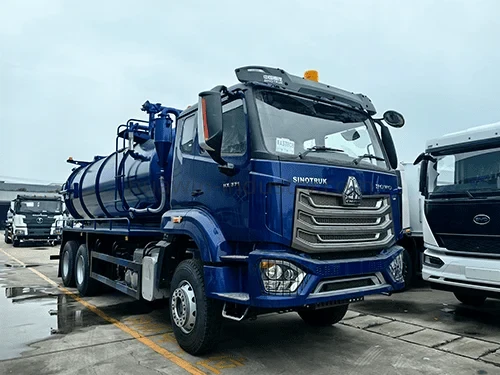

Brand New 18,000 Liters Vacuum Sewage Tank Truck
The vacuum sewage tank truck is mainly used to suck, transport, unload, and load waster water and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck industrial waste oil, and sewage in large factories.
| Model: | ZZ1257V4647B1R |
|---|---|
| Drive type: | 6X4 right hand drive |
| Wheel base (mm): | 4600+1350 |
| Cab type: | Forward control over engine, all-steel-welded construction, tilting cab; rear points airbag suspensions. |
| Heating and ventilating system with A/C. | |
| Engine model: | WD615.47, 371HP EURO II |
| 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Power output: | 371HP |
| Torque output: | 1500N.m |
| Emission (ml) | 9726CC |
The Brand New 18,000 Liters Vacuum Sewage Tank Truck features powerful vacuum suction capability, large sewage carrying capacity, and efficient waste transportation performance. Equipped with a high-efficiency vacuum pump system and reinforced sewage tank structure, it can quickly collect, transport, and discharge sewage, sludge, and liquid waste materials with stable and reliable operation. Its heavy-duty chassis, stable driving performance, and durable pipeline system ensure efficient operation under various working conditions, while the large 18,000-liter tank capacity reduces transportation frequency and improves working efficiency for municipal sanitation, septic tank cleaning, sewer maintenance, and industrial waste management operations.
| Name | Standard configuration | |
|---|---|---|
| Model: | ZZ1257V4647B1R | |
| Drive type: | 6X4 right hand drive | |
| Wheel base (mm): | 4600+1350 | |
| Cab type: | Forward control over engine, all-steel-welded construction, tilting cab; rear points airbag suspensions. | |
| Heating and ventilating system with A/C. | ||
| Engine model: | WD615.47, 371HP EURO II | |
| 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Power output: | 371HP | |
| Torque output: | 1500N.m | |
| Emission (ml) | 9726CC | |
| Brakes: | Dual independent circuit fully pneumatic with automatic slack adjusters, Spring loaded hand brake | |
| Transmission gear: | HW19710 gear box with 10 forward and 2 reverse | |
| Front axle: | Drum brake 9000kg | |
| Rear axle: | Drum brake, 16000kg*2 | |
| Clutch ( mm): | Reinforced diaphragm clutch, diameter 430 mm | |
| Fuel tank (L): | 400 or 600 | |
| Tyre: | 315/80R22.5 tubeless tires,11 pcs including 1 spare tire | |
| Dimension (mm) | 10300x2550x3600(mm) | |
| Gross Vehicle Weight:(kg) | 25000 | |
| Kerb Weight:(kg) | 14000 | |
| Maximum Speed:(km/h) | 90 | |
| B. Vacuum Tank | ||
| Name | Standard configuration | |
| Tank volume | 18,000 Liters | |
| Material: | Carbon steel | |
| Shell Body: | 6 mm nominal thickness | |
| End Plate | 6 mm nominal thickness | |
| Baffle Plate | 6 mm nominal thickness | |
| Tank shape: | Ellipse | |
| Compartment: | One compartment | |
| (multi-compartment are available) | ||
| Strengthen ring: | Cool blended U shape. Add the strengthen ring on the tank out circle. | |
| Tipping hydraulic: | For convenient tipping at 45 degree angle, one heavy tipping hydraulic pump is fixed. | |
| Shell Finish: | Shot blasted with 1 anti rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement. | |
| Safety support | fix with safety valve during working | |
| Lever detector | Fix one lever detector on the rear of the tank for clearing the sullage. | |
| Over Pressure device | Fixed on the top of the tank | |
| Vacuum valve | For keeping the tank's inside vacuum | |

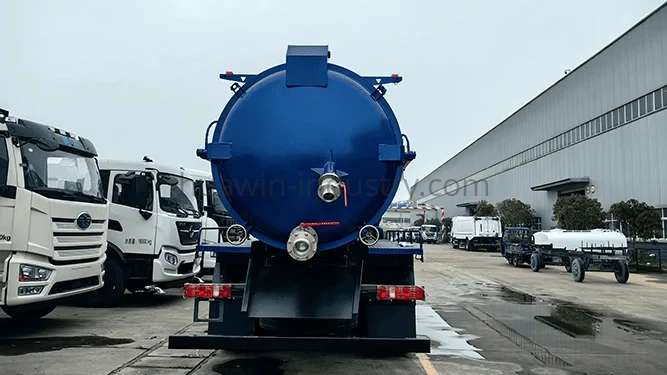

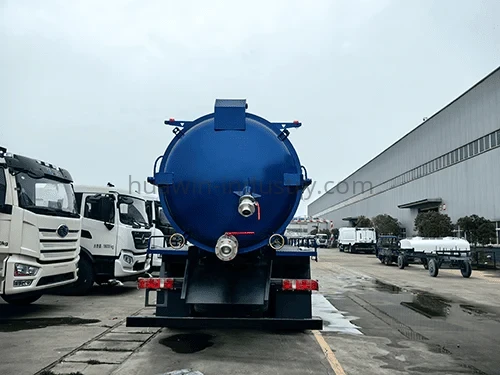

| Sewage discharge valve | The stainless steel discharge valve is fixed on the rear used for keeping the tank's rear clean | |
| Name | Standard configuration | |
| Operation: | Opened by hydraulic | |
| Safety: | Automatic testing hydraulic valve | |
| Lock device: | Manual locking device | |
| Seal: | Rigidity and manual synthetic rubber seal rings | |
| Water discharge valve | one way 100mm ball valve | |
| C. Rear Cover: | ||
| Vacuum Pump system | Standard configuration | |
| Model: | Famous Chinese brand | |
| Max vacuum: | ≥-0.098Mpa | |
| pumping rate | 300 m3/h | |
| Speed: | 1500 r/mm | |
| Driving Power approximately | 15 KW | |
| Suction Pipeline system | Standard configuration | |
| Diameter: | 100mm(4”) | |
| Material | PVC spire strengthen hose | |
| Accessories | 4” single way valve | |
| PIPING work | All the pipe are fixed on the top, even when the tank is tipping, it is still able to work | |
| D. Vacuum Pump and Suction Pipeline: | ||
| Name | Standard configuration | |
| Control | Provide all easy control system | |
| Assembly | All the controlling devices and where to be fixed are all confirmed | |
| after we talked with our customers | ||
| Control | All the control devices are in one water proof box. | |
| Marks | Make clear marks on the necessary places of the whole truck | |
| E. Control: | ||
| Name | Standard configuration | |
| Outside Sandblasting | all the steel and stainless steel parts are sandblasted before painting | |
| Painting | Primer and final painting | |
| Logo | paint customer's logo | |
| Training | Two free day training in our factory | |
| Others tools | Hydraulic jack with wheel wrench | |
| F. Painting & Traning: | ||
| Name | Standard configuration | |
| Outside Sandblasting | all the steel and stainless steel parts are sandblasted before painting | |
| Painting | Primer and final painting | |
| Logo | paint customer's logo | |
| Training | Two free day training in our factory | |
| Others tools | Hydraulic jack with wheel wrench | |
| Name | Standard configuration | |
|---|---|---|
| Model: | ZZ1257V4647B1R | |
| Drive type: | 6X4 right hand drive | |
| Wheel base (mm): | 4600+1350 | |
| Cab type: | Forward control over engine, all-steel-welded construction, tilting cab; rear points airbag suspensions. | |
| Heating and ventilating system with A/C. | ||
| Engine model: | WD615.47, 371HP EURO II | |
| 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Power output: | 371HP | |
| Torque output: | 1500N.m | |
| Emission (ml) | 9726CC | |
| Brakes: | Dual independent circuit fully pneumatic with automatic slack adjusters, Spring loaded hand brake | |
| Transmission gear: | HW19710 gear box with 10 forward and 2 reverse | |
| Front axle: | Drum brake 9000kg | |
| Rear axle: | Drum brake, 16000kg*2 | |
| Clutch ( mm): | Reinforced diaphragm clutch, diameter 430 mm | |
| Fuel tank (L): | 400 or 600 | |
| Tyre: | 315/80R22.5 tubeless tires,11 pcs including 1 spare tire | |
| Dimension (mm) | 10300x2550x3600(mm) | |
| Gross Vehicle Weight:(kg) | 25000 | |
| Kerb Weight:(kg) | 14000 | |
| Maximum Speed:(km/h) | 90 | |
| B. Vacuum Tank | ||
| Name | Standard configuration | |
| Tank volume | 18,000 Liters | |
| Material: | Carbon steel | |
| Shell Body: | 6 mm nominal thickness | |
| End Plate | 6 mm nominal thickness | |
| Baffle Plate | 6 mm nominal thickness | |
| Tank shape: | Ellipse | |
| Compartment: | One compartment | |
| (multi-compartment are available) | ||
| Strengthen ring: | Cool blended U shape. Add the strengthen ring on the tank out circle. | |
| Tipping hydraulic: | For convenient tipping at 45 degree angle, one heavy tipping hydraulic pump is fixed. | |
| Shell Finish: | Shot blasted with 1 anti rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement. | |
| Safety support | fix with safety valve during working | |
| Lever detector | Fix one lever detector on the rear of the tank for clearing the sullage. | |
| Over Pressure device | Fixed on the top of the tank | |
| Vacuum valve | For keeping the tank's inside vacuum | |
| Sewage discharge valve | The stainless steel discharge valve is fixed on the rear used for keeping the tank's rear clean | |
| Name | Standard configuration | |
| Operation: | Opened by hydraulic | |
| Safety: | Automatic testing hydraulic valve | |
| Lock device: | Manual locking device | |
| Seal: | Rigidity and manual synthetic rubber seal rings | |
| Water discharge valve | one way 100mm ball valve | |
| C. Rear Cover: | ||
| Vacuum Pump system | Standard configuration | |
| Model: | Famous Chinese brand | |
| Max vacuum: | ≥-0.098Mpa | |
| pumping rate | 300 m3/h | |
| Speed: | 1500 r/mm | |
| Driving Power approximately | 15 KW | |
| Suction Pipeline system | Standard configuration | |
| Diameter: | 100mm(4”) | |
| Material | PVC spire strengthen hose | |
| Accessories | 4” single way valve | |
| PIPING work | All the pipe are fixed on the top, even when the tank is tipping, it is still able to work | |
| D. Vacuum Pump and Suction Pipeline: | ||
| Name | Standard configuration | |
| Control | Provide all easy control system | |
| Assembly | All the controlling devices and where to be fixed are all confirmed | |
| after we talked with our customers | ||
| Control | All the control devices are in one water proof box. | |
| Marks | Make clear marks on the necessary places of the whole truck | |
| E. Control: | ||
| Name | Standard configuration | |
| Outside Sandblasting | all the steel and stainless steel parts are sandblasted before painting | |
| Painting | Primer and final painting | |
| Logo | paint customer's logo | |
| Training | Two free day training in our factory | |
| Others tools | Hydraulic jack with wheel wrench | |
| F. Painting & Traning: | ||
| Name | Standard configuration | |
| Outside Sandblasting | all the steel and stainless steel parts are sandblasted before painting | |
| Painting | Primer and final painting | |
| Logo | paint customer's logo | |
| Training | Two free day training in our factory | |
| Others tools | Hydraulic jack with wheel wrench | |
1. Powerful Vacuum Suction System
Equipped with a high-efficiency vacuum pump for strong suction capability.
Quickly collects sewage, sludge, and liquid waste materials.
Stable suction performance improves operational efficiency.
2. Large 18,000 Liters Tank Capacity
Large-capacity tank reduces transportation frequency.
Improves working efficiency for long-distance sewage transport.
Suitable for large-scale sanitation and industrial operations.
3. Durable Sewage Tank Structure
Reinforced high-strength steel tank ensures long service life.
Corrosion-resistant design suitable for sewage transportation.
Sealed tank structure helps prevent leakage and odor spread.
4. Reliable Heavy-Duty Chassis
Strong chassis structure provides stable driving performance.
Suitable for heavy-load transportation operations.
Excellent durability under complex working conditions.
5. Efficient Pipeline and Discharge System
Durable pipeline and valve system ensure smooth suction and discharge.
Easy tank cleaning and sewage unloading operation.
Reliable hydraulic control improves operational safety.
