SINOTRUK HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck is widely used for road flushing, landscaping, fire sprinklers, factory dust removal and emergency fire fighting. With popular and durable SINOTRUK WP engine, 371hp, with heavy duty chassis and frame.

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 1

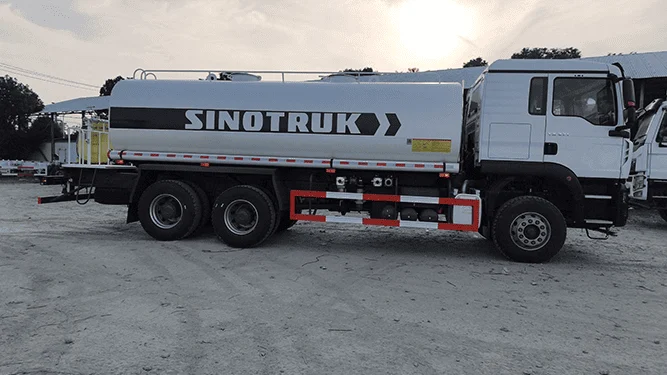

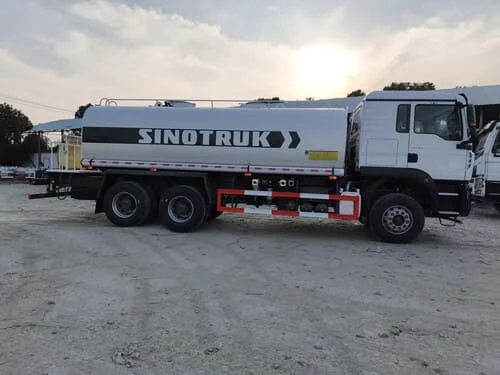

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 2

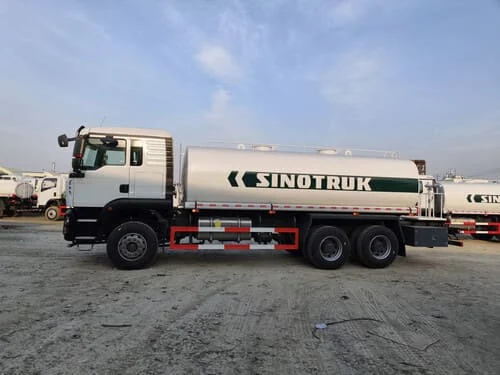

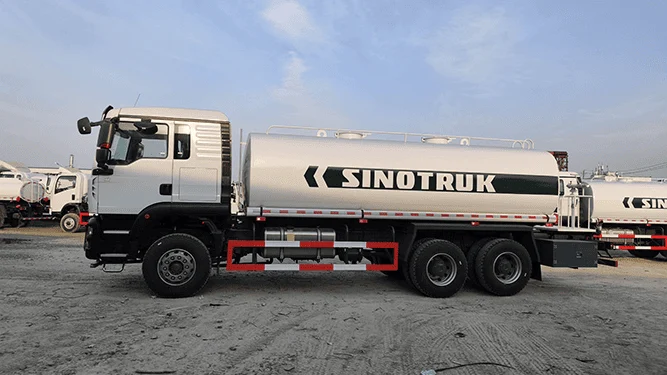

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 3

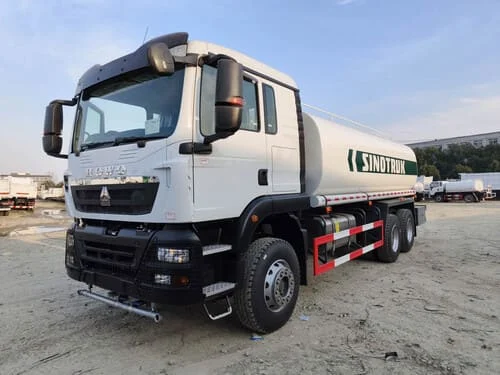

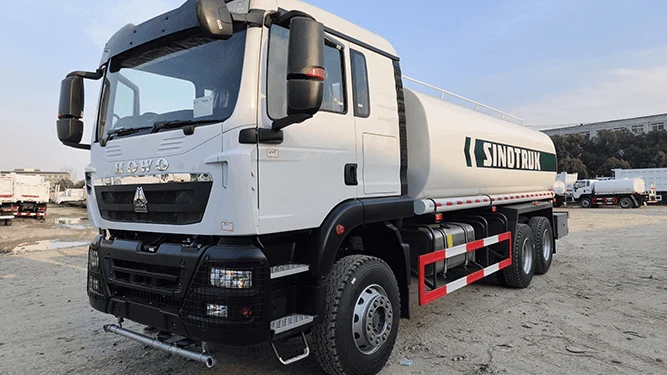

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 5

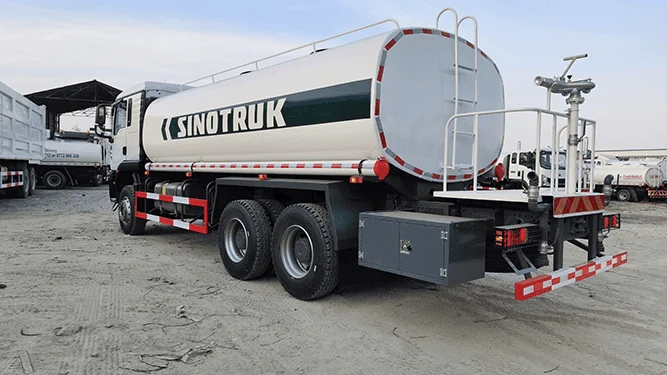

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 4

Models:


Overall dimensions (L x W x H)mm	9500×2550×3250
Wheel base (mm)	4625+1350
Wheel track (front/rear) (mm)	2022/1830/1830
Approach/Departure angle(°)	17/19
Tare Weight	11900
payload	25000
Front axles loading capacity	1x9000
Rear axles loading capacity	2x16000
Brand	SINOTRUK
Model	WD615.47/WP10.340E22/WP10.380E22WP12.400E201
Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power（HP)	371hp/340HP/380hp/400hp
Emission standard	Euro II or Euro III etc

Products Showcases:

Application

Road flushing and landscaping: SINOTRUK water tanker truck is suitable for all kinds of road flushing, such as trees, green belts, lawn greening and so on. It can sprinkle water, dust pressing, high-low spraying, pesticide spraying, guardrail washing etc., and it can effectively carry out landscaping and road maintenance.
‌Fire sprinkler: SINOTRUK water tanker truck is not only used for landscaping, but also for fire sprinklers. In emergency situations, sprinklers can quickly provide water to support firefighting operations.
Factory dust removal: SINOTRUK water tanker truck also play an important role in the dust removal of factories. By spraying water mist, dust can be effectively suppressed and the working environment can be improved. ‌
‌Others: SINOTRUK water tanker truck also has the functions of water transport, drainage and emergency fire fighting. Its design allows it to function in a variety of scenarios and improve work efficiency.

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 4

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 3

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 2

Specifications:


Cabin	Driving type 6x4 Right hand drive(left hand drive is optional)
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	9500×2550×3250
		Wheel base (mm)	4625+1350
		Wheel track (front/rear) (mm)	2022/1830/1830
		Approach/Departure angle(°)	17/19
Weight in KGS	Tare Weight	11900
		payload	25000
		Front axles loading capacity	1x9000
		Rear axles loading capacity	2x16000
Max. driving speed（km/h）	90
Engine	Brand	SINOTRUK
		Model	WD615.47/WP10.340E22/WP10.380E22WP12.400E201
		Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power（HP)	371hp/340HP/380hp/400hp
		Emission standard	Euro II or Euro III etc
Gearbox	HW19710, 10 forwards and 2 reverse, with PTO
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	BOSCH, power steering, hydraulic steering with power assistance
Fuel tank (L)	400L
Tire	12.00R20 tyre/315/80R22.5/13R22.5, in total 11 pieces including one spare tire
Brakes	Service brake: dual circuit compressed air brake
Brakes		Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Water Tank	20 m3
		With front and rear spray function
		With rear work platform
		With pump
		With water canon


Cabin	Driving type 6x4 Right hand drive(left hand drive is optional)
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	9500×2550×3250
		Wheel base (mm)	4625+1350
		Wheel track (front/rear) (mm)	2022/1830/1830
		Approach/Departure angle(°)	17/19
Weight in KGS	Tare Weight	11900
		payload	25000
		Front axles loading capacity	1x9000
		Rear axles loading capacity	2x16000
Max. driving speed（km/h）	90
Engine	Brand	SINOTRUK
		Model	WD615.47/WP10.340E22/WP10.380E22WP12.400E201
		Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power（HP)	371hp/340HP/380hp/400hp
		Emission standard	Euro II or Euro III etc
Gearbox	HW19710, 10 forwards and 2 reverse, with PTO
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	BOSCH, power steering, hydraulic steering with power assistance
Fuel tank (L)	400L
Tire	12.00R20 tyre/315/80R22.5/13R22.5, in total 11 pieces including one spare tire
Brakes	Service brake: dual circuit compressed air brake
Brakes		Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Water Tank	20 m3
		With front and rear spray function
		With rear work platform
		With pump
		With water canon

Feature:

Professional
1. SINOTRUK has produced water tanker trucks for more than 20 years and gain very good reputations from home and abroad.

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 3

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 4

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 5

Durable

For different purpose, the tanker material can be different. If carry drinking water or milk stainless steel(#304 or #316) is needed.
If just carry water to spray, carbon steel material is ok, we can add anti-rust coating inside to protect to tank and make it durable.
We can also add rear work platform and water cannons if you need.
The chassis are SINOTRUK heavy duty types, quality is guaranteed.

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 2

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 4

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 3

Fast Delivery
The production time for our HOWO TX 6X4 20000 22000 Liters Water Sprinkler Tank Truck is around 45-55 days after we receive the deposit or receive the LC.

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 4

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 5

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 2

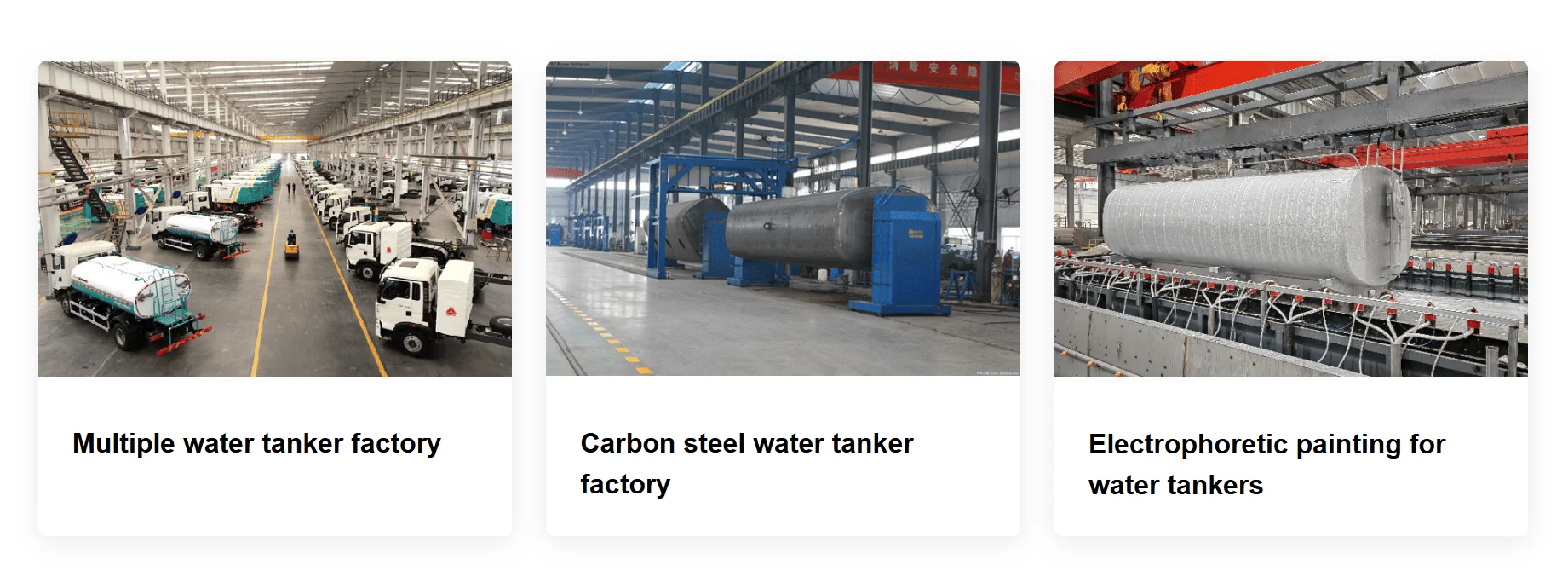

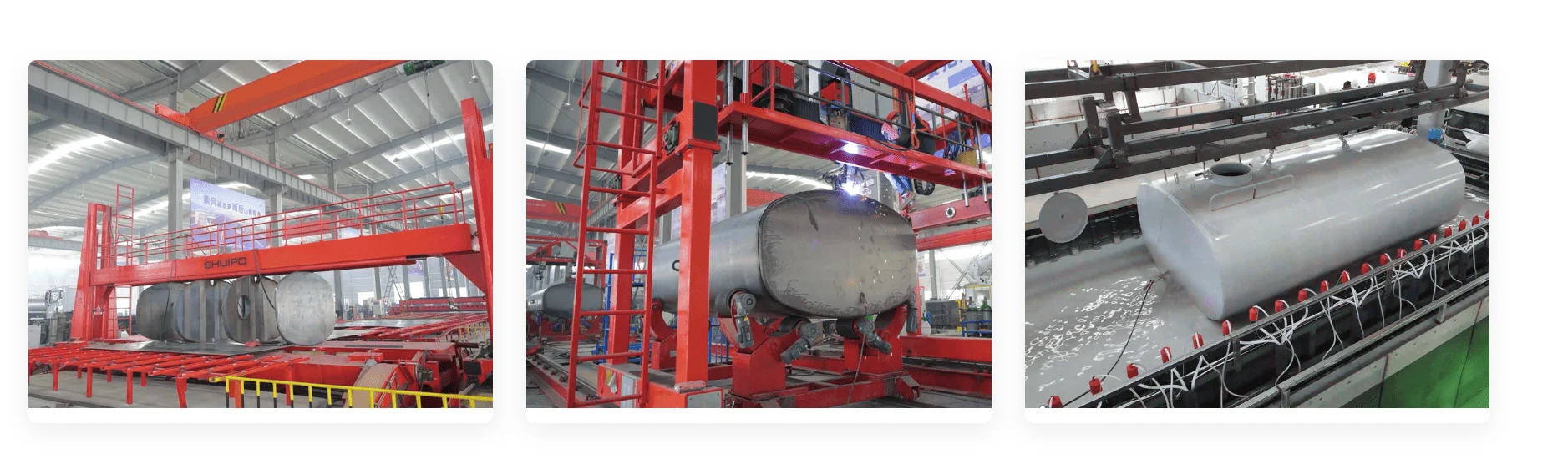

China Professional Tanker Truck Manufacturer

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 6

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 7

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 8

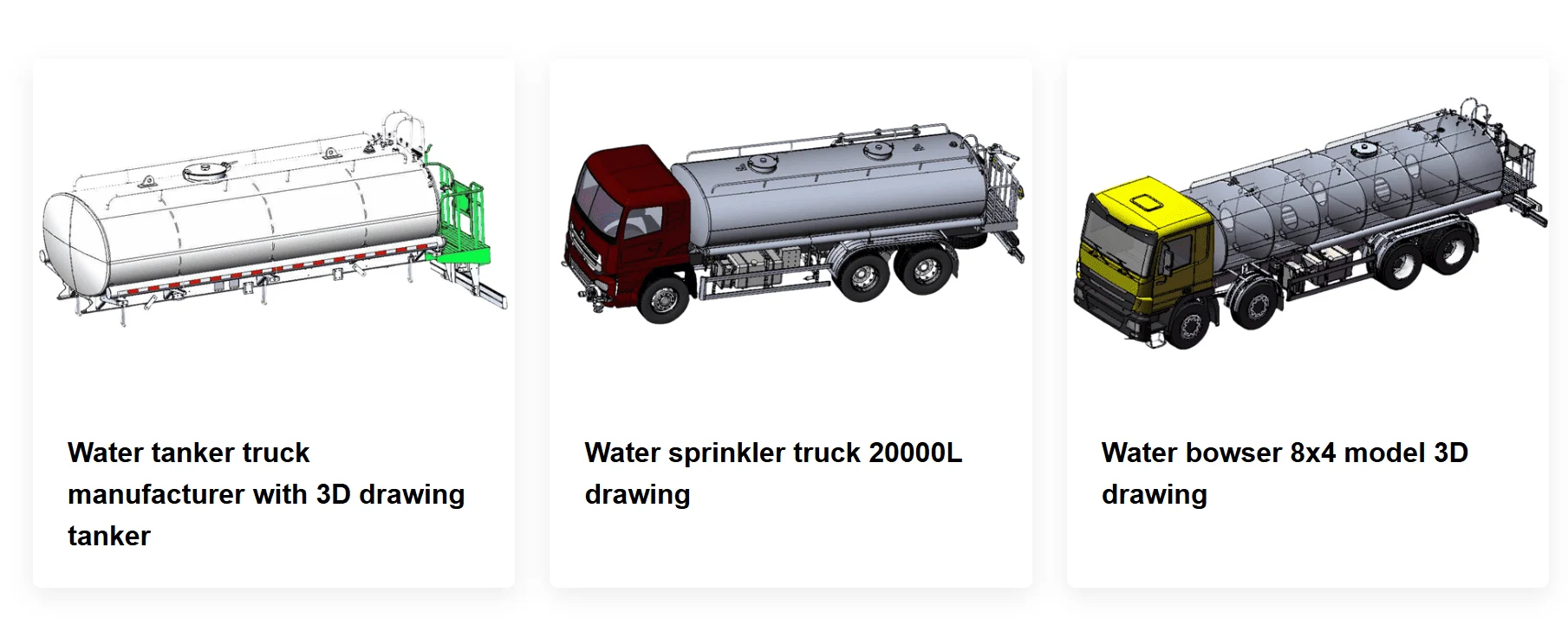

We design and customize water tank with front water jetting nozzles for road cleaning, rear water spraying nozzles for dust suppression and plant watering, rear working platform to be mounted with water canon and used for water jetting, also available for fire extinguishing in emergency.

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 9

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 8

HOWO TX 6X4 20000 Liters Right Hand Drive Water Sprinkler Tank Truck 7
