This truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.
The 8000 liters fecal suction tank with be used to suction waste water, fecal and some other liquid waste rubbish under the drain in the city, community, etc.
| Overall dimensions (L x W x H)mm | 7880x2330x3020 |
|---|---|
| Wheel base (mm) | 4500 |
| Payload | 8000kg |
| Front axles loading capacity | 3200kg |
| Rear axles loading capacity | 10000kg |
| Max. driving speed(km/h) | 95 |
| Model | YC4E140-33, in-line, water-cooled, four-stroke, direct injection |
| Horse Power(HP) | 140HP, 105KW |
| Displacement (cc) | 4257cc |
| Max Torque | 500N.m@1600rmp |
| Emission standard | Euro II |

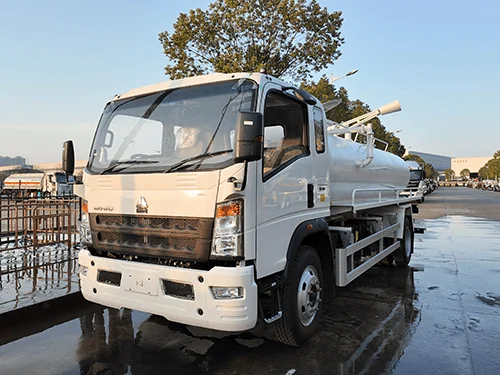

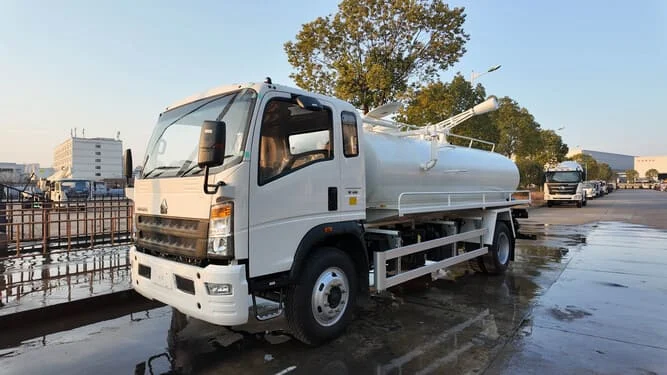

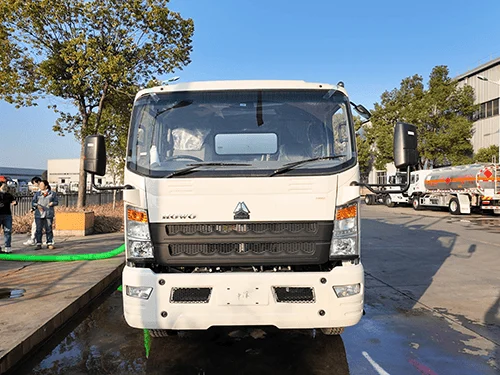

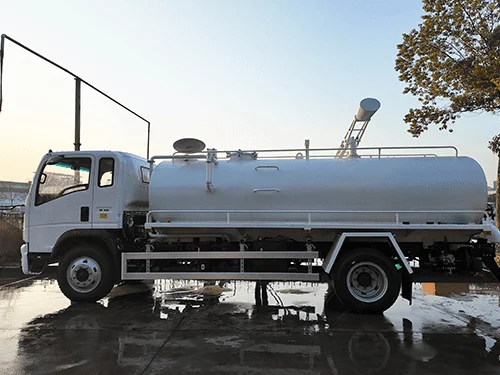

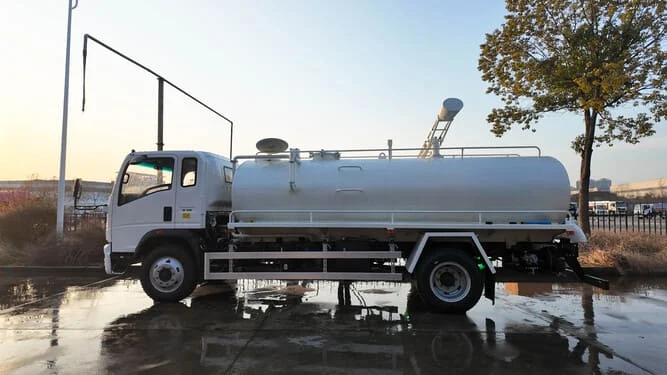

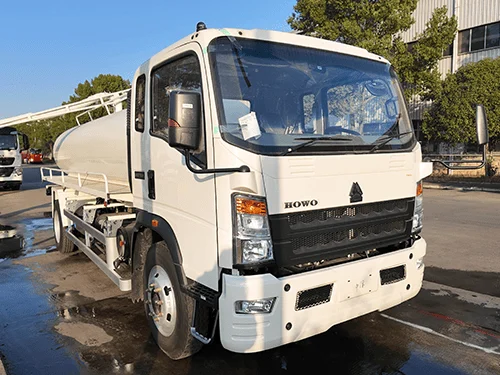

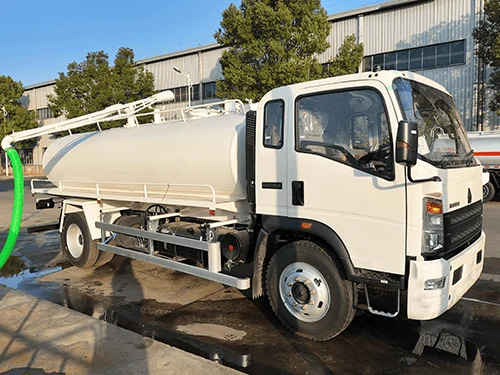

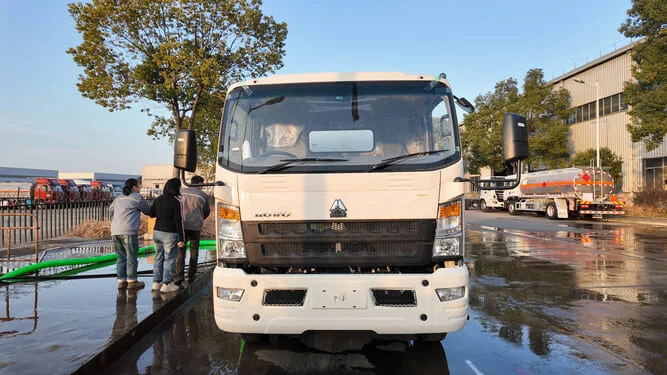

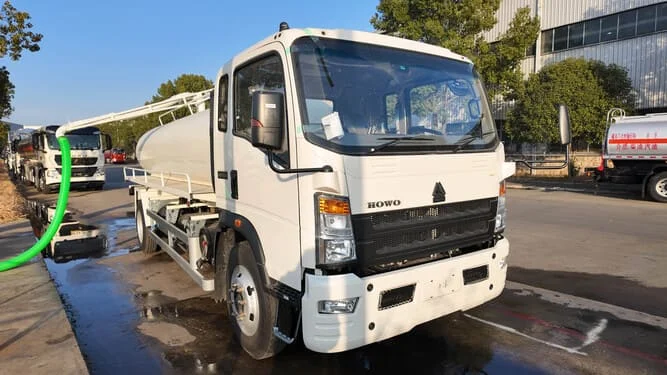

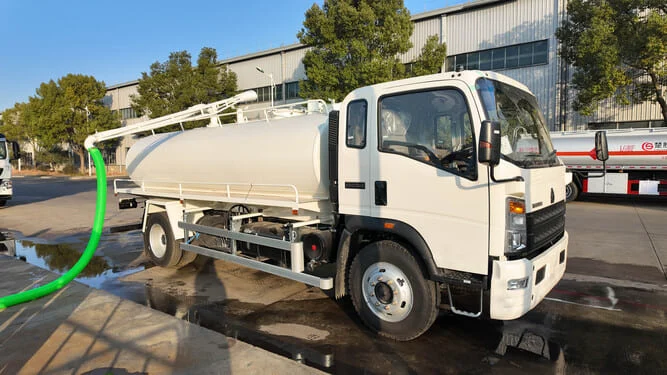

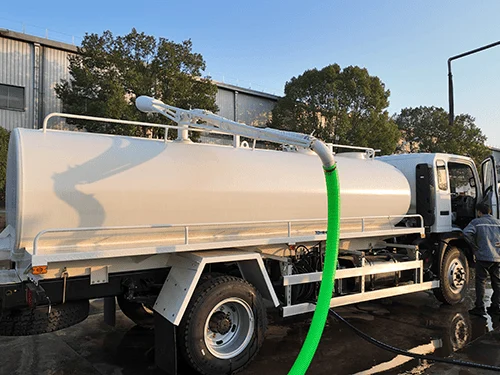

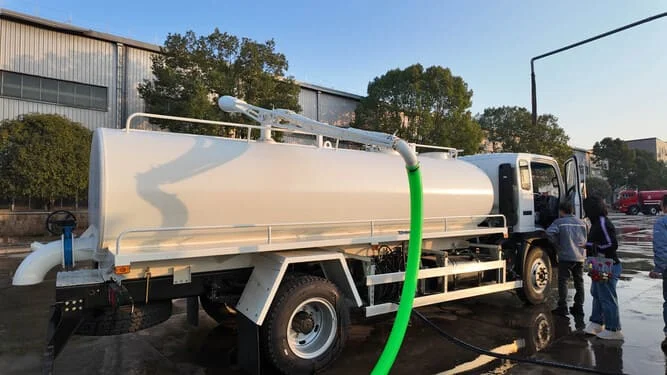

The SINOTRUK HOWO 4×2 8000 Liters Fecal Suction Truck features reliable power performance, strong vacuum suction capability, and efficient sewage transportation capacity. Equipped with a durable HOWO chassis and a high-efficiency vacuum pump system, it can quickly collect, transport, and discharge sewage and waste materials with stable operating performance. The reinforced tank structure, flexible 4×2 chassis design, and low operating cost make the truck suitable for urban sanitation, municipal sewage cleaning, septic tank service, and industrial waste collection operations.
| SINOTRUK HOWO 4X2 8000 Liters Fecal Suction Truck | |||
|---|---|---|---|
| Cabin | 2080 cabin, Driving type 4x2, right hand drive | ||
| With two seats and one bed, with air conditioner | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7880x2330x3020 | |
| Wheel base (mm) | 4500 | ||
| Payload | 8000kg | ||
| Front axles loading capacity | 3200kg | ||
| Rear axles loading capacity | 10000kg | ||
| Max. driving speed(km/h) | 95 | ||
| Engine | Brand | YUCHAI | |
| Model | YC4E140-33, in-line, water-cooled, four-stroke, direct injection | ||
| Horse Power(HP) | 140HP, 105KW | ||
| Displacement (cc) | 4257cc | ||
| Max Torque | 500N.m@1600rmp | ||
| Bore & Stroke | 110x112mm | ||
| Emission standard | Euro II | ||
| Gearbox | WLY6TS55, Manuel, 6 Forwards gear & 1 reverse, with PTO | ||
| Tire | 8.25R20 tyre | ||
| Tank | Sewage tank: 8000 liters, with 8m+6m long sewage suction pipe, with vacuum pump, with clean function | ||
| SINOTRUK HOWO 4X2 8000 Liters Fecal Suction Truck | |||
|---|---|---|---|
| Cabin | 2080 cabin, Driving type 4x2, right hand drive | ||
| With two seats and one bed, with air conditioner | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7880x2330x3020 | |
| Wheel base (mm) | 4500 | ||
| Payload | 8000kg | ||
| Front axles loading capacity | 3200kg | ||
| Rear axles loading capacity | 10000kg | ||
| Max. driving speed(km/h) | 95 | ||
| Engine | Brand | YUCHAI | |
| Model | YC4E140-33, in-line, water-cooled, four-stroke, direct injection | ||
| Horse Power(HP) | 140HP, 105KW | ||
| Displacement (cc) | 4257cc | ||
| Max Torque | 500N.m@1600rmp | ||
| Bore & Stroke | 110x112mm | ||
| Emission standard | Euro II | ||
| Gearbox | WLY6TS55, Manuel, 6 Forwards gear & 1 reverse, with PTO | ||
| Tire | 8.25R20 tyre | ||
| Tank | Sewage tank: 8000 liters, with 8m+6m long sewage suction pipe, with vacuum pump, with clean function | ||
◆ We are MANUFACTURER more than 20 years experience, Professional, well design!

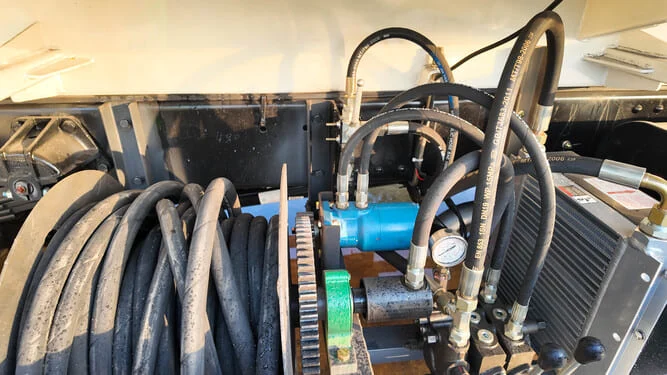

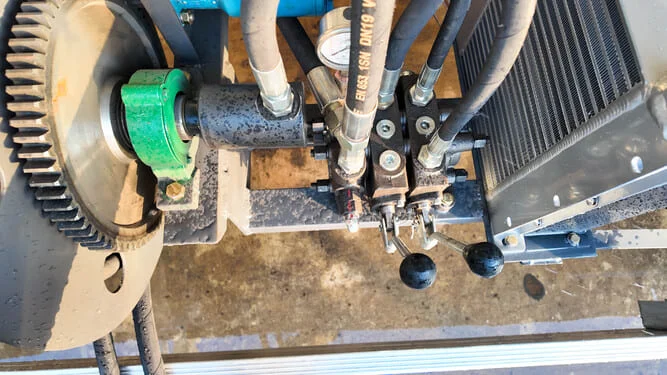

◆ Consist of original HOWO Vehicles chassis, hydraulic system, elevating system and electrical system.
◆ Germany Simens AUTO welding process technology, quality guarantee.
◆ Standard Q235A high strength carbon steel with high-tech anticorrosion treatment to ensure tanker durability and safety
◆ Its sewage tank has effective volume up to 8m3, which ensures the vacuum suction truck a high loading capacity, strong dynamic property, and high work efficiency.
◆ Unique Optional Tank material: Stainless, carbon steel, Aluminum alloy, High strength plastic steel

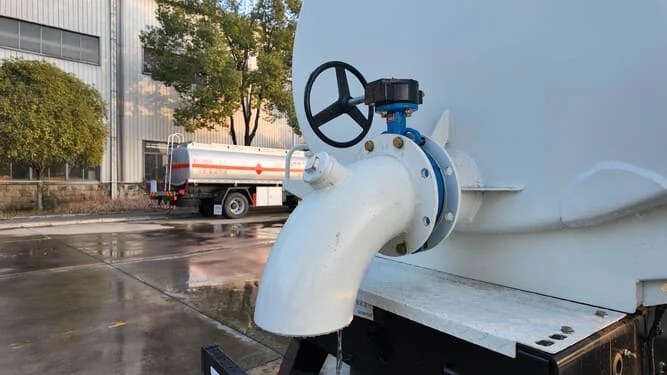

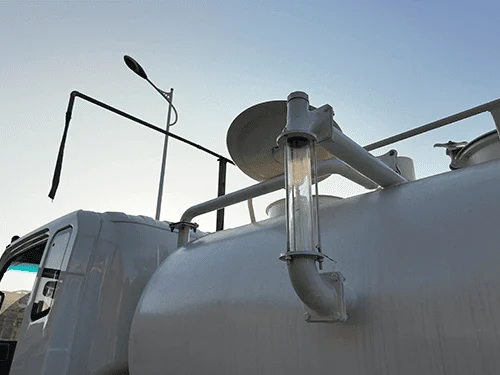

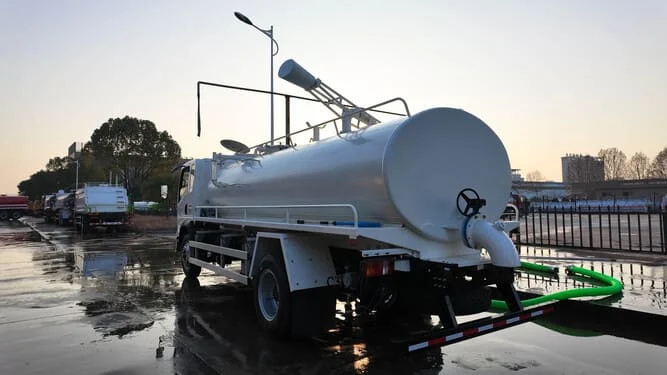

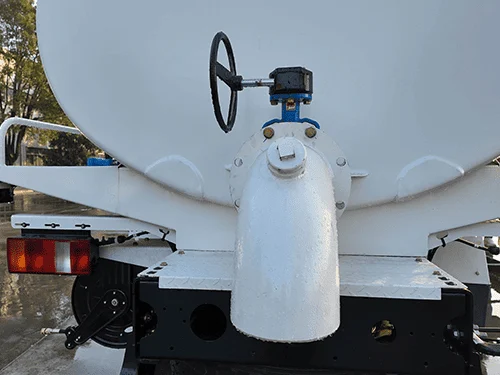

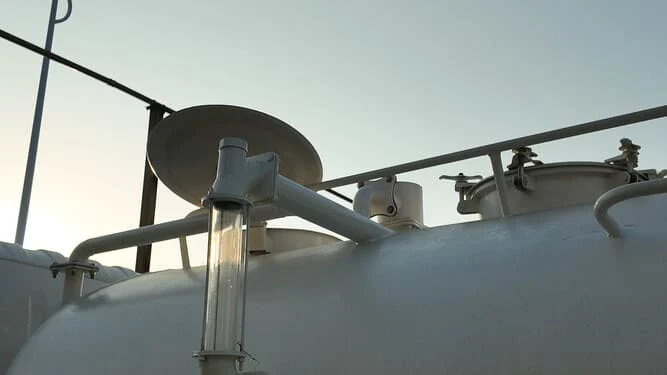

◆ Tank inside treated with stainless steel, equipped with liquid indicator, high level alarm device and high level over flow safety device. Tank rear equipped with discharge valve.
